Survey3W PRO Camera
(Manual Focus)
Red+Green+NIR (RGN, NDVI)
|

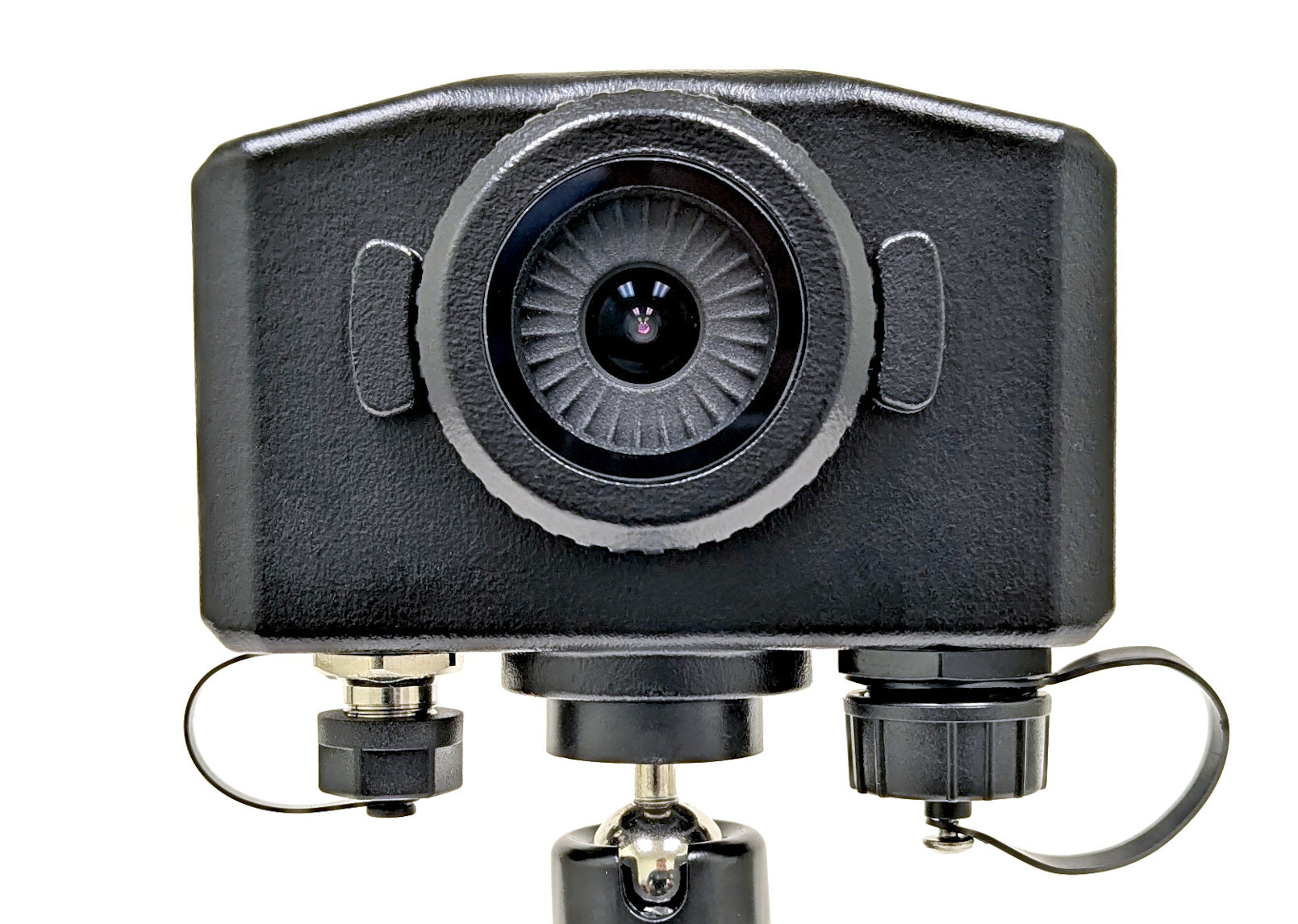

Survey3W Manual Focus Lens Wheel Installed
|
Survey3 PRO is a Survey3 multispectral camera inside an industrial IP67 waterproof housing containing our Advanced V2 GNSS (uBlox MAX-M10S) GPS Receiver. It is available in 6 filter options: RGB, OCN, RGN, NGB, RE, NIR. Each of the 2 lens options are offered in a fixed infinity focus or with an adjustable manual focus wheel. The Survey3 PRO can be purchased with a Survey3 camera pre-installed or you can install your existing Survey3 camera into the Survey3 PRO housing.
An industrial m12 cable connection provides power and signal control. An external uSD memory card port allows you to access captured media without opening the housing. The rear door can be opened to reveal 2 switches which control power and GNSS (GPS) source (internal vs external). The Survey3 camera's rear LCD touchscreen is also accessible with the rear door open. The rear door can be easily removed if waterproofing is not needed.
Easily view the live video over WIFI, remotely trigger image capture, adjust camera settings and extract captured media using our free Android application Survey3 Control Application.
Main Features:
-
Durable plastic housing protects all 12 models of Survey3W and Survey3N cameras
-
Waterproof IP67 protection: fully submersible in liquids to 1 meter depth for 30 minutes
-
Industrial IP67 6 pin circular m12 (male) cable port with power and data signals
-
External IP67 micro SD memory card port (supports up to 512GB capacity card)
-
Integrated Advanced V2 GNSS (uBlox MAX-M10S) GPS Receiver
-
Removable front glass lens cap provides access to manual lens focusing wheel
-
Multiple 1/4-20 tripod threads: 1 bottom, 1 on right side and 1 on left side
-
User-removable rear door allows access to camera's rear LCD touchscreen
-
2 internal switches: power (on/off) and GNSS source selection (internal/external)
-
Internal desiccant packet to absorb extra moisture
*All IP67 ratings for the Survey3 PRO assume seals are free of debris and mated properly. Failure to properly reinstall the Lens Cover, Rear Door and Memory Card Port Cap may allow moisture to enter and cause damage.
Exterior Overview:
| Label | Name | Description |
| A | GNSS (GPS) Receiver | Advanced V2 GNSS (uBlox MAX-M10S) |
| B | Lens Cover | Hydrophobic glass lens protector. Twist to unlock. |
| C |
Rear Door Latches
|
Holds silicone door gasket sealed during water immersion. |
| D | Lens Focus Wheel | When the Lens Cover is removed you can easily turn the lens wheel to adjust the focus distance. [Optional Accessory] |
| E | Tripod Screw Threads | 1/4-20 mounting threads |
| F | Tripod Screw Threads | 1/4-20 mounting threads |
| G | 6 pin m12 (Male) Power + Data Port | PWR, GND, GNSS, TRIG, EXP, GND |
| H | Tripod Screw Threads | 1/4-20 mounting threads |
| J | Memory Card Port | Micro SD memory card (up to 512GB) |
| K | Survey3 Camera | Supports all 12 Survey3W and Survey3N models |
| L | Status LED | Conveniently check camera status |
| M | Power Switch | X = OFF, O = ON |
| N | GNSS Source Switch | Down = External GNSS, Up = Internal GNSS |
| O | Rear Door | Hinged 180 degree rear door is easily removed |
| P | Rear Gasket | Thick silicone sealing gasket |
Interior Overview:
| Label | Name | Description |
| A | Power Switch Off (X) | Disconnects external power connection |
| B | Power Switch On (O) | Connects external power connection |
| C | Status LED | Conveniently check camera status |
| D | Capture Mode | Photo, Video, Media Review |
| E | Shutter Speed | Camera exposure duration |
| F | Photo Count | Number of images available to capture |
| G | Battery Charge | Battery meter, 4 levels: 25%, 50%, 75%, 100% |
| H | Capture Button | Click to capture an image |
| J | GNSS Source Switch | Down = External GNSS |
| K | GNSS Source Switch | Up = Internal GNSS |
| L | GNSS Status | GNSS Status |
| M | Switch Door Tab | Pull tab up and out to open door |
| N | Camera Pull Tab | Pull tab to carefully remove camera from housing, unplugging cables as needed. Door must be removed first. |
| O | Camera Settings | Adjust main camera settings |
| P | Media Information | Shows media resolution, ratio, framerate, etc |
| Q | Mode Settings | Adjust mode (photo) settings |
Included Contents:
- Survey3W Camera - Red+Green+NIR (RGN, NDVI)
- Survey3W Manual Focus Lens Wheel (installed)
- Survey3 Camera Battery (installed)
-
Survey3 PRO Housing (includes installed Advanced V2 GNSS)
Survey3 PRO Cable Options:
All Survey3 PRO cameras contain a 6 position (pin) m12 industrial IP67 male (M) plug. The port on the camera is male (M) and the connecting cable is female (F). The Survey3 PRO is designed to be connected to external power, it is not intended to be used on its own.
We offer a few variations of Survey3 PRO cables to complement your configuration:
Use this m12 female (F) cable to connect directly to our DAQ-A. Power must be supplied to the DAQ-A at its side USB micro port. This is known as a "Power to Camera" DAQ-A cable.
m12(F) to USB (PWR) + TRIG + EXP
Use this m12 female (F) cable to connect to USB (A) power and standard servo PWM trigger and relay exposure pulse connections. The GNSS (GPS) wire is available and does not have a connector installed.
m12(F) to m12(M)
Use this m12 female (F) to m12 male (M) cable to connect to other pin compatible m12 systems.
Survey3 PRO Specifications:
The camera inside is a Survey3 so most specifications are the same (see further below). Below are some Survey3 PRO specific details:
| Dimensions | 110 x 54 x 96 mm, 4.3 x 2.1 x 3.8 in (length x width x height) |
| Weight | 287g, 0.63lbs |
| Waterproof Rating | IP67 (rainproof, submersible to 1 meter for 30 minutes) |
| Cable Port | m12 (Male) 6pin - A Code |
| GNSS (GPS) | Advanced V2 GNSS (uBlox MAX-M10S) |
| Power Input | 5.2V 0.8A (external power connection required, cable not included) |
