This discounted bundle has everything you'll need to use the Survey3 cameras with the DJI Inspire 2 drone. Our new tilting Inspire 2 mount allows you to lock the cameras in a tilted location such that during forward flight the cameras are parallel with the ground (nadir). The camera GPS cables will be shortened specifically for use on the Inspire 2 drone. Simply choose the number of cameras you want, the models of the cameras, and the micro SD memory capacity to complete your package.

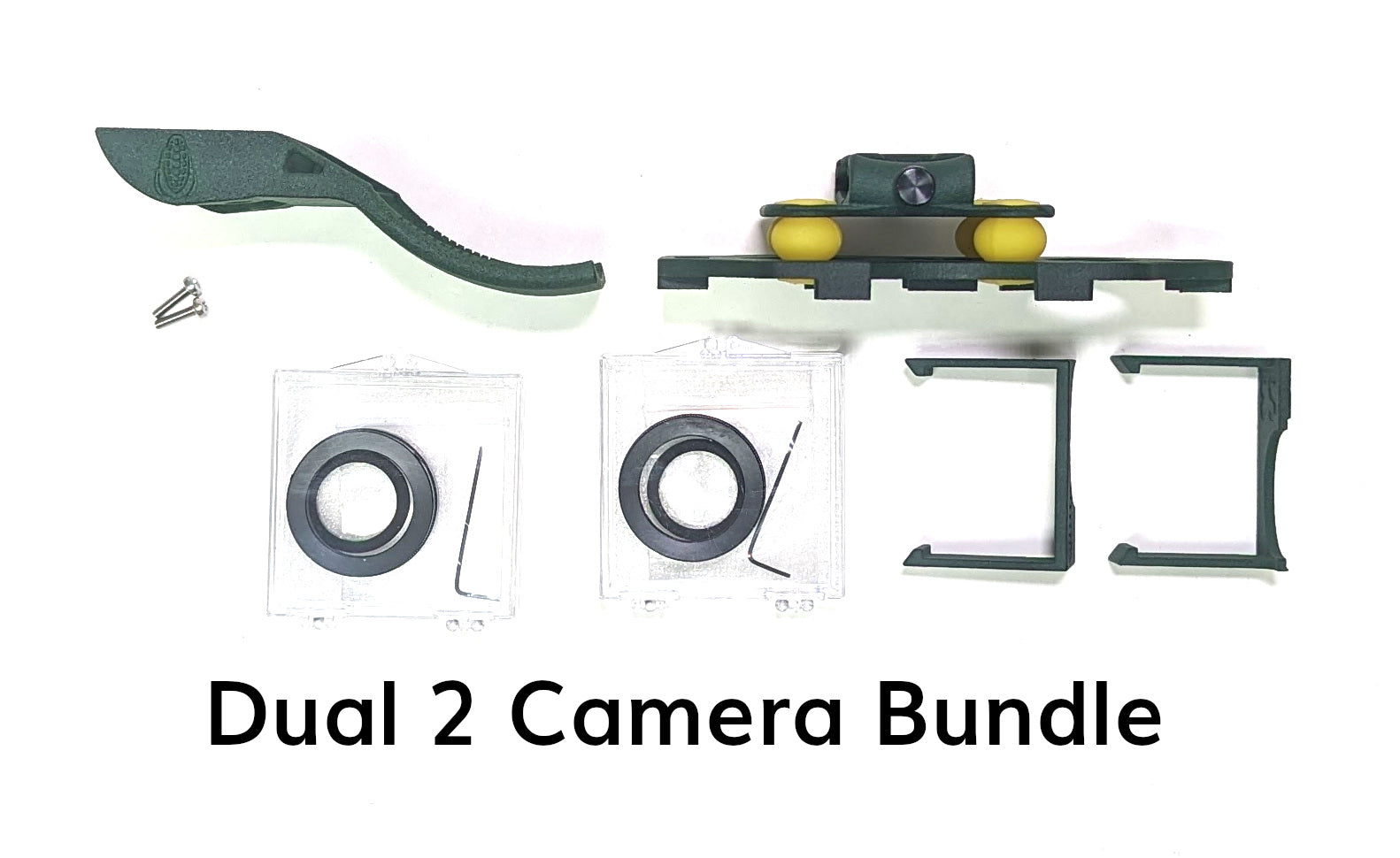

Included in this bundle:

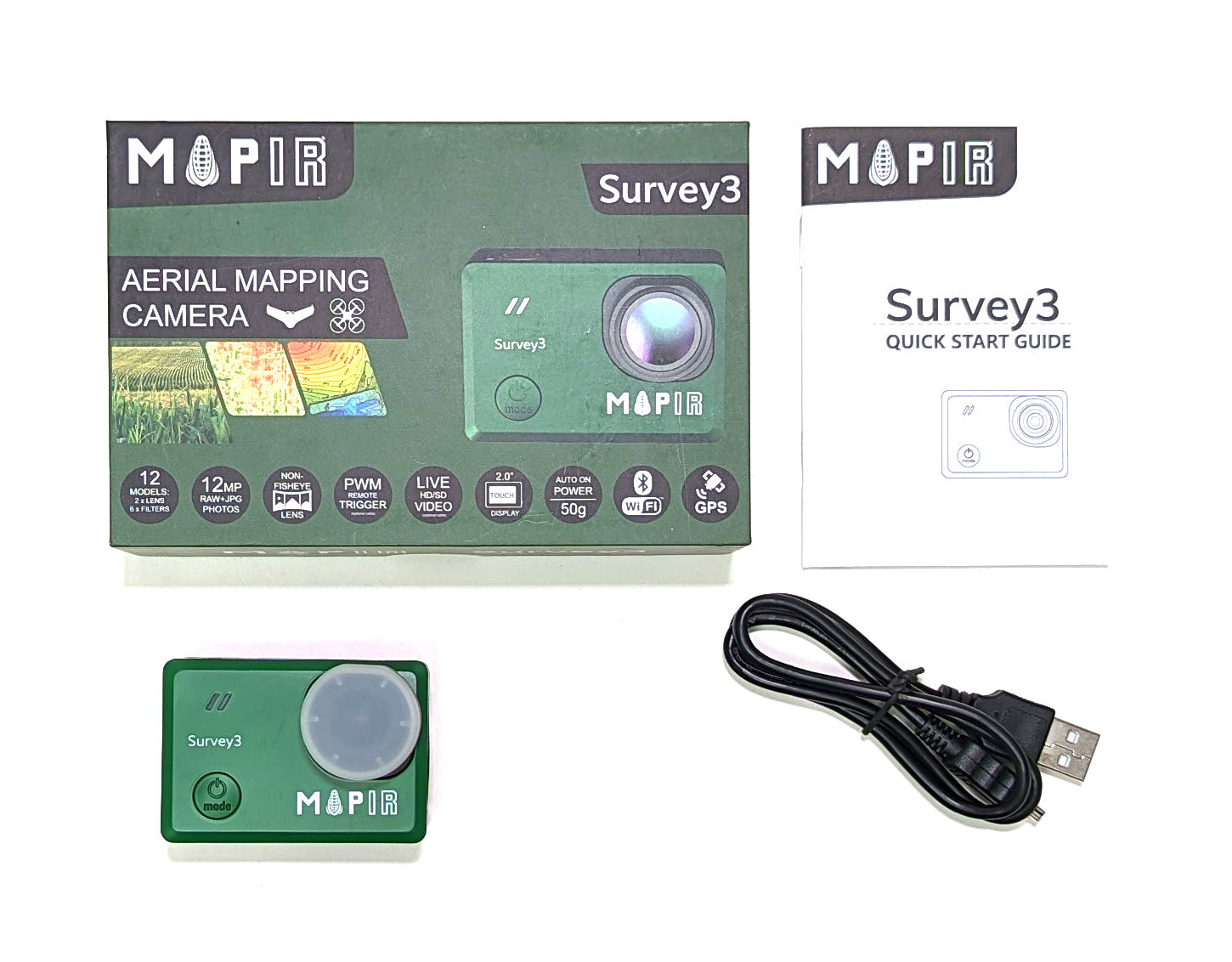

• Survey3 Camera(s)
• Survey3 Glass Lens Protector
• DJI Inspire 2 MAPIR Survey 3/2/1 Tilting Mount
• Survey3 Camera Clip

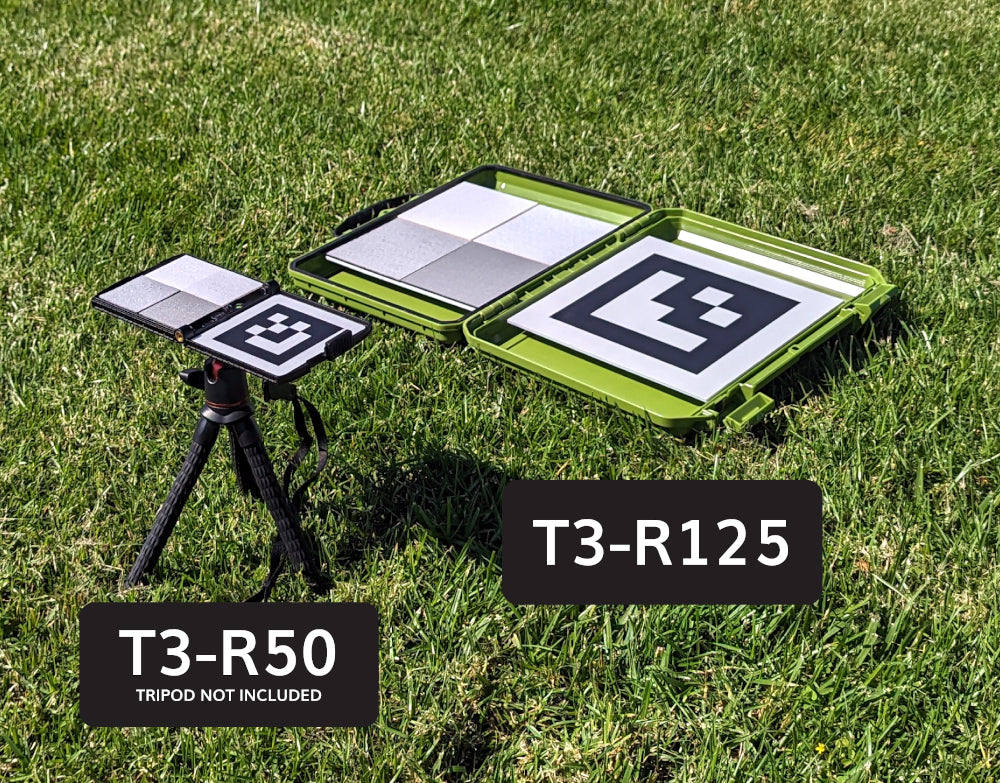

• Diffuse Reflectance Standard Calibration Target Package (T3-R50)
• MicroSD card(s)

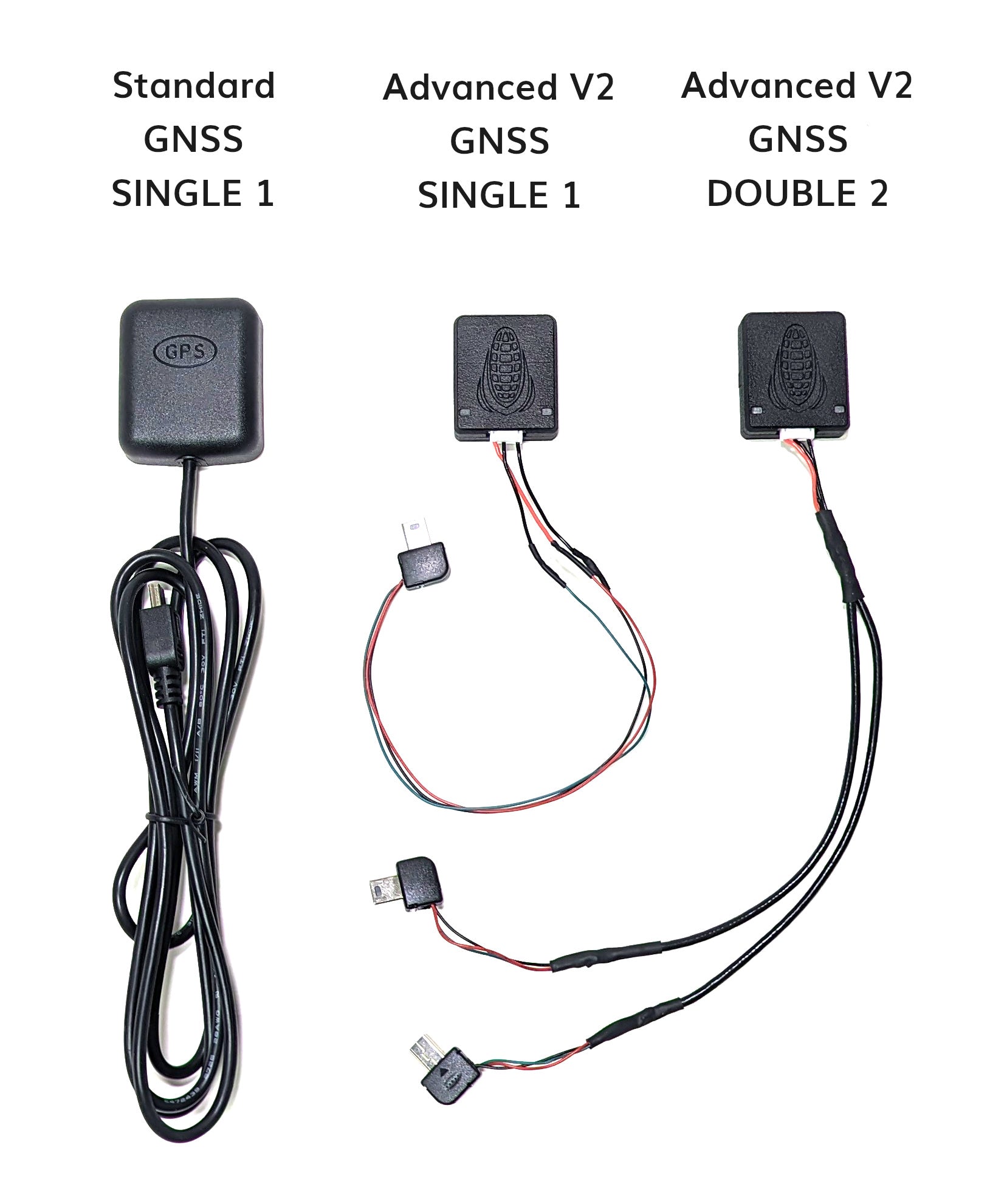

• Labor: Modify Survey3 GPS Cables

Install Instructions:

Step 1: Unscrew the original 2 DJI screws in the 2 locations marked in red below with a (not included) T9 torx tool:

Step 2: Place the mount as shown and tighten the 2 included  screws:

Step 3: Install the camera with a camera clip (not included). If using the Survey3 cameras, peel off the adhesive backing on the bottom of the GPS receiver, and press it such that the GPS receiver adheres to the top center of the mount.

Step 4: Unscrew the black side thumb knobs and slide the camera mount to the desired tilt location. Align the edge of the camera mount with the notch in the drone mount (the photo below shows a 0 degree tilt location). There are notches every 2.5 degrees from 0 to 20 degrees. Every 5m/s is 5 degrees of tilt, so 10m/s speed would require 10 degrees of tilt.

Step 5: Happy flying!
